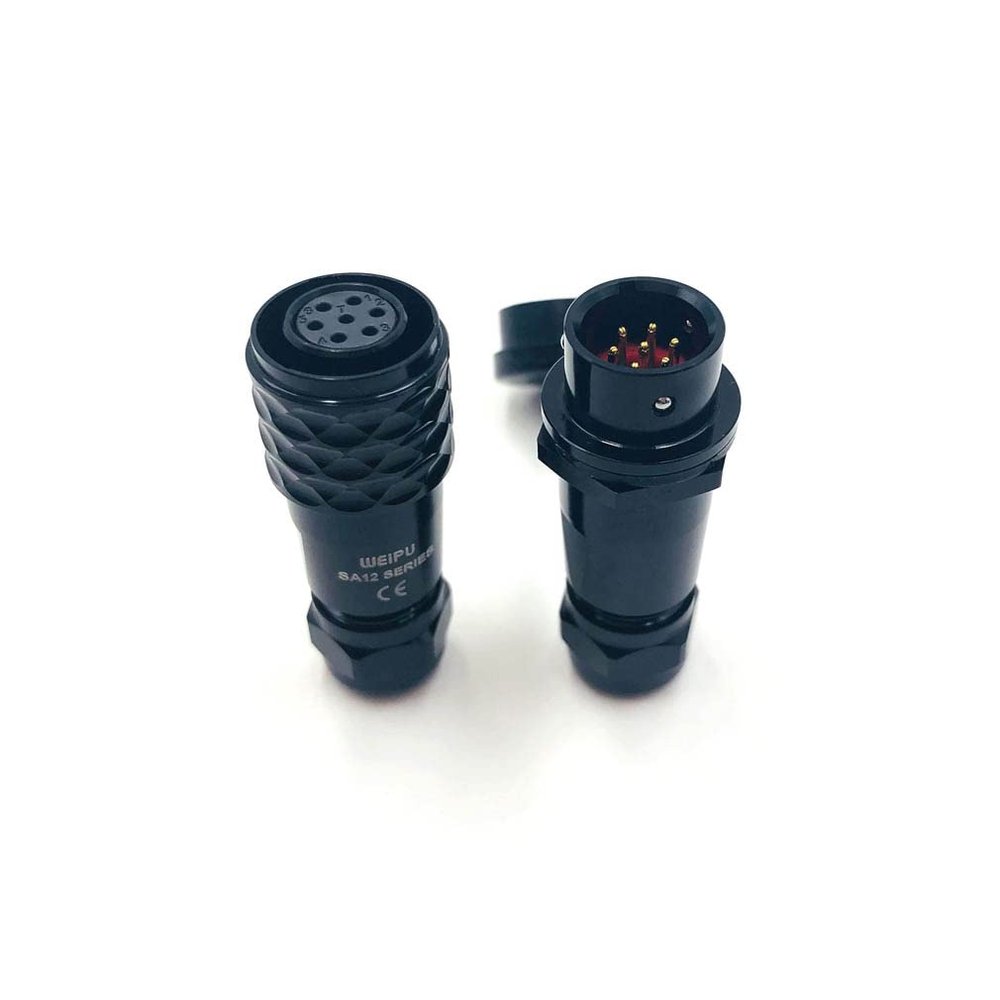

FORTTAR WEIPU SA1210/P2B 2 3 4 5 6 7 9 Pin Waterproof Connector, IP67 Tiny Male Female Metal Connector Plug and Socket 12mm Black (Cable to Cable Inline, Female Plug,7pin)

Description

• WEIPU original SA12 serias 2 3 4 5 6 7 9 pin connector, male plug female socket, female plug male socket available.
• 12mm Tiny waterproof design ensures safety and reliability, 3 different type of install: square panel mount, thread nut panel mount, cable to cable install.
• Male and female metal connectors offer strong and stable connection, 12mm IP67 waterproof rating protects against dust and water damage.
• SOLDER type, panel cutout diameter: 12mm, all size and paremeter details, please refer to 2nd and 3rd picture.
• Professional and trusted power connector wholesale and retail supplier.

Weipu SA12 2 3 4 5 6 7 9-Pin IP67 Waterproof Connector High voltage Power Cord Bulkhead Aviation Connector

Plug type: (* means pin, 2 3 4 5 6 7 9 pin available)
Square panel mount:
Male plug: SA1210/P*B, female socket: SA1213/S*B
Female plug: SA1210/S*B, female socket: SA1213/P*B
Thread panel mount:
Male plug: SA1210/P*B, female socket: SA1212/S*B
Female plug: SA1210/S*B, female socket: SA1212/P*B
Cable to cable inline install:
Male plug: SA1210/P*B, female socket: SA1211/S*B
Female plug: SA1210/S*B, female socket: SA1211/P*B

2pin, 3pin
Contact diameter: 1.6mm
Waterproof Level : IP67
Rated Current / Voltage : 13A/ 250V
Withstand Voltage: AC 1500V
Wire: > 2mm / AWG14

4pin, 5pin, 6pin, 7pin
Contact diameter: 1.0mm
Waterproof Level : IP67
Rated Current / Voltage : 5A/ 200V
Withstand Voltage: AC 1000V
Wire: > 0.785mm / AWG18

9pin
Contact diameter: 0.7mm
Waterproof Level : IP67
Rated Current / Voltage : 3A/ 125V
Withstand Voltage: AC 1200V
Wire: > 0.785mm / AWG18

Coupling: Threaded Coupling
Shell Materia: anodized aluminium
Insert Material: PPS man temperature 260
Contact materia: Brass (gold-plated)
Termination: solder
Cable outer diameter range5-8mm
Protection level: IP67
Durability: 500 times
Working temperature: -40+85

What's in the package:
1 plug + 1 socket with cover (4 sets of screws included for square panel mount)
