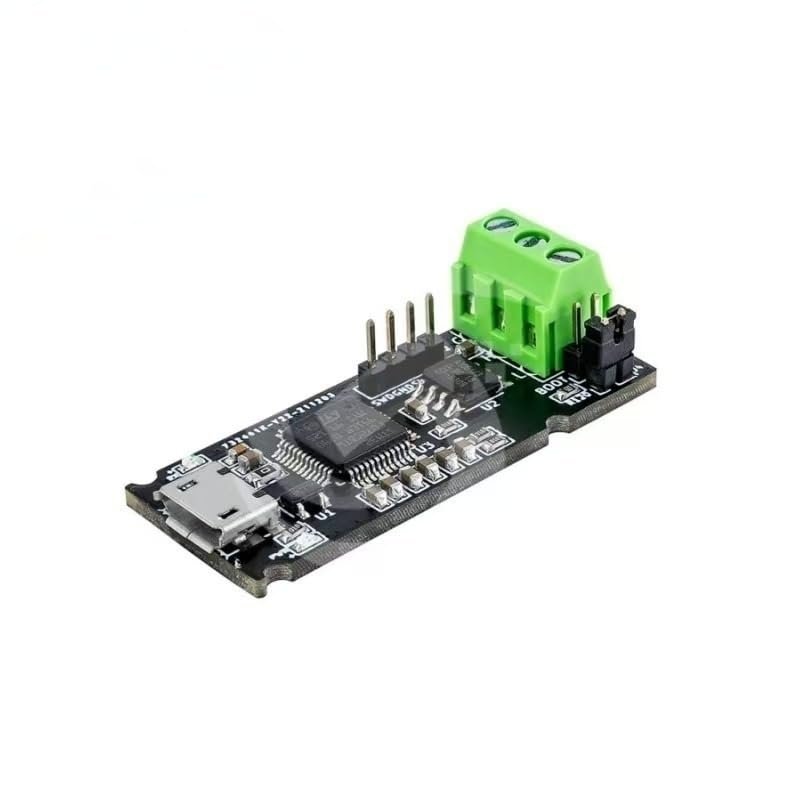

JIANGSHU USB to CAN Module, CANable PCAN Debugger CAN Bus Debugging Tool for Linux Win10 11 Type-C USB Debug Software Communication(MKS CANable,10PCS)

Description

• CANable V1.0 disconnects from the bus (zero load) when not powered on.
• CANable Pro V1.0 has a 2.5 kV rms signal and electrical
• Source isolation.
• The power regulator chip adopts LP5907MFX-3.3 low-noise LDO, with an output current of up to 250mA.
• It has a thermal shutdown protection function.
• Use USB interface for power supply and communication.
• Windows and Linux systems do not require driver installation.

Motherboard model: CANable Pro
microprocessor: STM32F072C8T6
Communication chip: ADM3053BRWZ
Input voltage: DC3.3V-5V
Output current: 250mA
Maximum Node:> one hundred and ten
Immunity: High common mode transient immunity>25KV/us
Transmission rate: 1Mbps
Working temperature: -40 to+85
PCB size: 16mm/50mm/1.6mm
Motherboard model: CANable
microprocessor: STM32F072C8T6
Communication chip: TJA1051T/3
Input voltage: DC3.3V-5V
Output current: 250mA
Maximum Node: thirty-two
Immunity: High common mode transient immunity>25KV/us
Transmission rate: 1Mbps
Working temperature: -40 to+150
PCB size: 16mm/40mm/1.6mm
Product Introduction
The CANable V1.0 module is an upgraded version of CANable, which can communicate at a data rate of up to 1 Mbit/s during the CAN fast phase,
Very suitable for product debugging, CAN bus control, and high-speed CAN applications in the automotive industry.
The CANable Pro V1.0 module is
CANable V1.0 module upgrade version, with high-speed transmission rate and stable operation
Under the premise of sexuality, the MKS CANable Pro V1.0 module has stronger anti-interference ability and is very suitable for industrial debugging or motor field applications.
Product Features
The CANable V1.0 and MKS CANable Pro V1.0 modules adopt high-performance ARM technology At Cortex% MO STM32F072C8T6
The processor operates at a frequency of up to 48 MHz.
The CANable V1.0 communication chip adopts the highly integrated chip TJA1051T/3, with a CAN data rate of up to 1 Mbit/s
The CANable Pro V1.0 communication chip adopts ADM3053BRWZ fully isolated chip, with high common mode transient immunity>25 kV/us, which enhances the
Anti disturbance performance.
three
CANable V1.0 supports up to 32 devices simultaneously connected to a PC.
CANable Pro V1.0 bus supports 110 or more
Multiple nodes, no power nodes interfere w
